6.4kW DIY Home Solar System Install STEP by STEP

Here are multiple reliable sources for solar panels. Great deals and discounts.

I love this racking system. It is reasonably priced and every component is thought out to make installation as easy and low cost as possible. The mounts don't require flashing and you can skip rails reducing the total cost. Watch this video on an installation I did with this racking: https://youtu.be/YzdNJN7sBvQ

Use the link below and the discount code "EVERYDAYGET50" for a $50 DISCOUNT on any purchase of $500 or more! (Code is valid for a limited time)

We used Pegasus racking for this project.

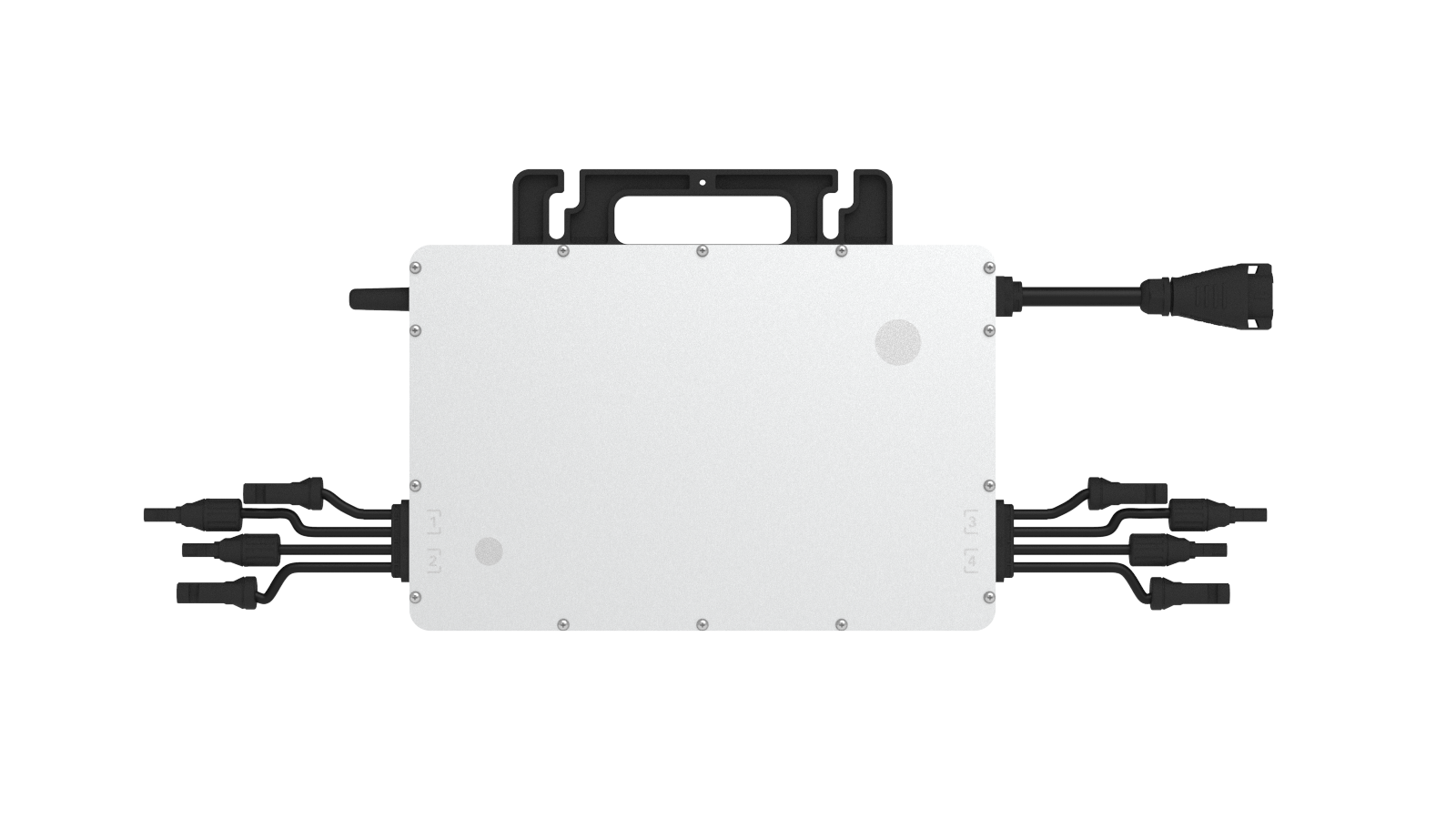

Hoymiles new microinverter HMS-2000 series are suitable for high-powered solar panels, which rank among the highest for 4-in-1 microinverters. Each microinverter can be connected to up to four panels and used in various applications, making it one of the most flexible solar solutions. With a maximum DC voltage of 65 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017, NEC-2020 Article 690.12, and CEC-2021 Sec 64-218. The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.

We used this small load center as an AC combiner box allowing us to bring together up to 3 separate circuits from the roof.

We used this for both the fuse (since we used line side taps) and the exterior disconnect.
Square D - HOM24L70RBCP Homeline 70-Amp 2-Space 4-Circuit Outdoor Main Lugs Load Center

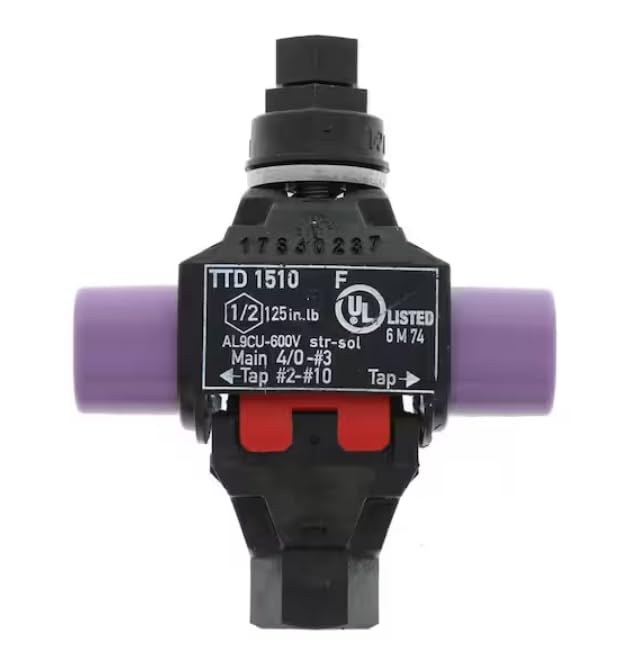

Line side tap allows connection without a breaker. BTC4/0-10 B-TAP Insulated Pierce Tap Connector, Main 4/0-3, Tap 2-10 (1 Unit)

XHF 5 Pcs 3/4" IP68 Strain Relief Nylon Cord Grip Waterproof NPT Cable Glands Adjustable UL Listed and RoHS Compliant

2 Port Insulated Multi Cable Connectors Single Entry Splice Electrical Power Connector 4-14 AWG Aluminum to Copper Wire Connectors | Can be used for Aluminum or Copper Wire

International Connector created this package by my request to provide everything you need for a clean solar combiner box with breakers and surge protectors. I like the DK10N size to give some margin for most installs.

This is my favorite size, it's good for up to 6AWG wire. Use this one if you don't need ground blocks and just want to pass through or combine strings.
Great Connectors for junction boxes and combiner boxes. Multiple sizes available.

Stäubli 1 Pair MC4 Male and Female | 12AWG / 10AWG
These are more expensive than the off brand MC4 connectors, but I have found them to be a higher quality and are more compatible with other connectors brands. These are the only ones I use now.

Great to have on hand, you can get black and red to make your own cables of any length. I recommend 10AWG wire for all solar panel string connections.

If you need a lot of PV wire it's much cheaper in bulk.
This is two 500ft spools of 10AWG Copper PV Wire, one black and one red for a total of 1,000ft.

These stainless steel clips slide on the edge of the solar panel frame to control PV wiring behind the panels.

If you are interested in the tools I use for solar projects here is a link.

Insulated Electrician Gloves 500V Touch-Screen Voltage/Flame Retardant Work Gloves, Electrical Rubber Non-slip Texture Design for Electricians Prevent Shock up to 500V

Klein Tools 32288 Insulated Screwdriver, 8-in-1 Screwdriver Set with Interchangeable Blades, 3 Phillips, 3 Slotted and 2 Square Tips

If you don't want to spend the money, you can just wrap your standard set with electrical tape...

FESA Electrician Insulated Socket Set - 1000V 20-Piece Professional Insulated Ratchet & Socket Wrench Set (1/4" Drive) w/ 2 Extensions & 5 Hex Bits - 1000 Volt Tools for Electricians
